Flat Metal Roof Leaking Issues Explained

Effective Strategies for Identifying and Resolving Common Flat Roof Issues in Central Coast Homes

While flat roofs may not currently dominate the Australian roofing market, their adoption is steadily increasing among both residential and commercial buildings. These roofs are often seen gracing patios, carports, walkways, and other areas that require low-pitch roofing solutions. When the incline is minimal, flat roofs may also be referred to as “skillion roofs.”

Flat roofs come with a myriad of benefits; however, they also present specific challenges that homeowners must be aware of. Recognising the common problems associated with flat roofing systems and implementing effective strategies to mitigate them is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can significantly exacerbate roofing concerns.

What Factors Are Driving the Increased Popularity of Flat Roofs Among Homeowners?

The growing appeal of flat roofs in both residential and commercial constructions can be attributed to several compelling factors:

• They are quicker and simpler to install, facilitating faster project completion
• They provide easier maintenance access, making routine checks and repairs straightforward
• They create ideal platforms for solar panel installations, enhancing energy efficiency

The primary concern regarding flat roofs revolves around effectively managing water drainage. Water is the greatest adversary of your roof. When planning a new roof installation or renovating an existing one, it is crucial to assess multiple factors, particularly rainfall, which can vary considerably across different regions of Australia.

What Are the Main Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs, which facilitate the swift flow of rainwater into gutters, flat roofs possess a limited slope. This design can lead to water accumulation that persists for extended periods. If water is not efficiently directed off the roof, it can result in:

• Surface staining and deterioration of roofing materials
• Structural weakening of roofing components over time
• Build-up of mould and mildew, which can pose health risks
• Leaks that may penetrate the interior of the building

Addressing these challenges requires a focus on effective roof plumbing and thoughtful design that accommodates the unique issues presented by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Prior to installation, a qualified roofing contractor will evaluate several critical aspects that impact drainage efficiency:

• Local rainfall intensity and prevailing weather conditions
• Overall roof area and precise dimensions
• Gutter configurations and effective drainage outlets
• Downpipe dimensions and specifications
• Overflow prevention measures to manage excess water
• Considerations concerning roof pitch to improve drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with a slope less than this can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, do not perform well in very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are strongly recommended to ensure long-term performance and durability.

Exploring the Top Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two highly recommended roofing profiles suitable for low-pitch and flat roofs include:

Trimdek: This adaptable profile is appropriate for both roofing and wall applications. Its 28mm rib height and uniquely designed capillary groove improve water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws to secure the sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is essential for ensuring the long-lasting performance and reliability of your roofing system.

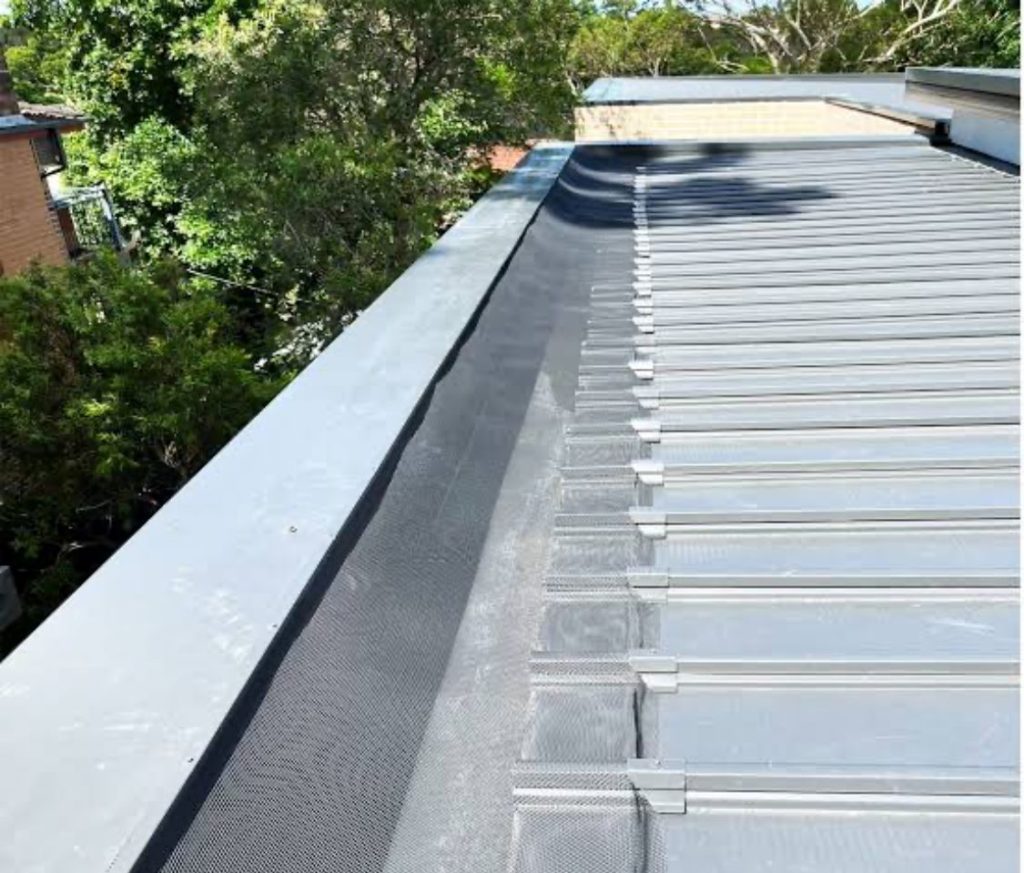

How to Manage Box Gutters and Flat Roof Drainage Effectively

On flat roofs, box gutters are typically used to connect roof panels to drainage outlets. As box gutters are located below the roof plane, they require careful detailing and expert installation to prevent blockages and water back-up issues.

Common challenges associated with box gutters include:

• Accumulation of debris from surrounding trees and foliage
• Improper fall or slope that obstructs water flow
• Overflowing back into the roof structure, resulting in leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Considerations Should Be Made When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow requirements of flat roofs. It is often necessary to install guttering specifically designed to manage larger water volumes. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitating quicker water removal during heavy rainfall
• Effectively sweeping debris away with high flow capabilities
• Providing easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, which are perfect for flat metal roofs while also delivering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, which enables faster drainage. This design efficiently sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to suitably sized downpipes (for instance, 100mm × 75mm) that can manage substantial water volumes. In areas rich in trees, installing leaf diverters or guards can significantly mitigate blockage issues.

How Flashings Are Essential in Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets meet walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water can accumulate around these joints if they are not sealed correctly.

To effectively prevent water ingress:

• Flashings must be carefully shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is required at corners and seams where water may accumulate

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes special precautions during installation and uses high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Routine Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to guarantee clear drainage
• Checking downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may accumulate
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repairs in the future, thereby extending the life of your roofing system.

Explore the Advantages of Properly Installed Flat Roofs

When crafted and installed by proficient metal roofing professionals, flat roofs provide:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Furthermore, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, enhancing both the functionality and appearance of the building.

How to Ensure You Receive the Optimal Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in a coastal environment. Whether you are commencing a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing concerns and avert more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Have More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may pond or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as robust as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed against water. Anything below 5 degrees necessitates a careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters situated below the roof line, often located between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff but must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Need Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
