Shed Wiring Tips for Electricians Working in Rural Areas

If you have a sheds located on acreage and find managing extension cords from your home cumbersome, it is essential to ensure your shed is wired properly. Whether you need a straightforward storage sheds with just a light and a power point, or a fully operational workshop that utilises welders and compressors, adhering to the correct procedures is critical. In NSW, the only legal way to achieve this is by hiring a licensed electrician.

This comprehensive guide will walk you through the necessary steps to supply electricity to your shed, detailing what your electrician will need for the installation process while providing an estimate of the costs involved in the Mid North Coast.

Maximise Your Shed's Electrical Supply: Understanding Cable Runs for Effective Power Delivery

The foremost consideration for any shed wiring project is ensuring the efficient transfer of power from your main switchboard to the shed itself. On more expansive properties, this distance can extend to 30, 50, or even over 100 metres. The longer the distance, the larger the cable diameter required to effectively manage voltage drop.

When planning your cable runs, you typically have two main options to choose from:

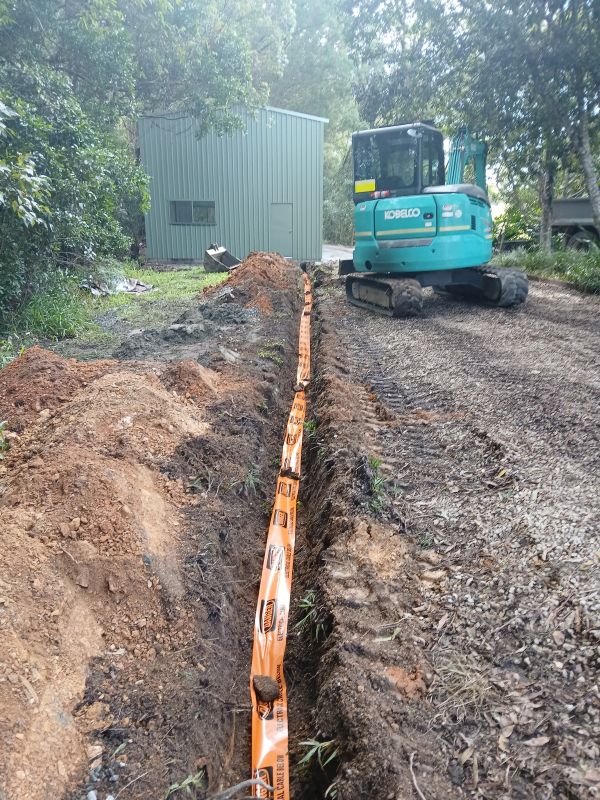

• Underground cable run — This is the most common and visually appealing choice. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles frequently pass. This method protects the cable from harsh weather, wildlife interference, and falling branches, making it the preferred selection for most properties with substantial acreage.
• Overhead cable run — Although less frequently used, this option may be necessary if solid rock is present or if the terrain complicates trenching. Overhead runs must adhere to proper clearance heights and require support poles, which can significantly increase installation costs.

For the majority of properties located in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most advisable approach. Your electrician in Bellingen can evaluate your site and suggest the best route for installation.

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

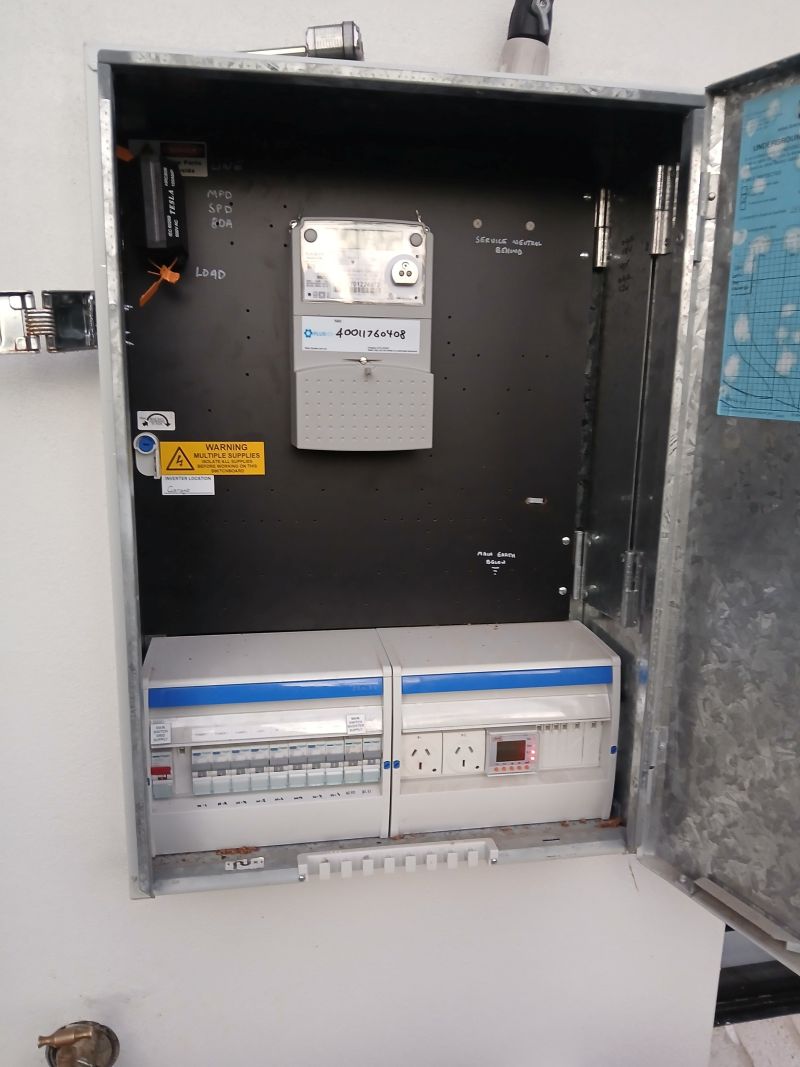

Running a single cable to the shed and plugging in appliances is insufficient. Any shed equipped with a proper power supply must contain a dedicated sub-board, often known as a distribution board. This device functions as a mini switchboard within the shed, efficiently managing all circuits.

Your sub-board will typically consist of the following crucial components:

• Main switch — This feature allows you to isolate all power to the shed independently from the main house, thereby enhancing safety and control.
• RCDs (Residual Current Devices) — These devices, mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This functionality is vital for safety in a shed environment where moisture, dust, and damaged leads are common.
• Circuit breakers — These components offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits.

If your house's switchboard is outdated, your electrician might also suggest upgrading it to effectively accommodate the additional load directed to the shed.

What Key Features Should Be Installed Inside Your Shed for Maximum Utility?

The specific installations your electrician performs inside the shed will depend entirely on its intended use. Here’s a breakdown of typical setups for various applications.

Creating an Effective Basic Storage Shed

If your shed primarily functions as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following configuration:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively brighten the entire area. Your electrician can offer suggestions on the best lighting arrangement based on the shed's size and layout.
• Two to four general power points — This will suffice for plugging in a charger, a radio, or a drop saw as needed. Anticipate standard power points and switches to operate on a single circuit.
• External light — A weatherproof LED light positioned above the door will ensure visibility, making it easier to avoid fumbling around in the dark when entering or exiting.

Designing a Fully Equipped Powered Workshop Shed

If you frequently utilise power tools such as drop saws, bench grinders, and dust extractors, a more sophisticated wiring configuration becomes essential:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother workflow.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is necessary for accommodating heavier tools that require more power to operate effectively.

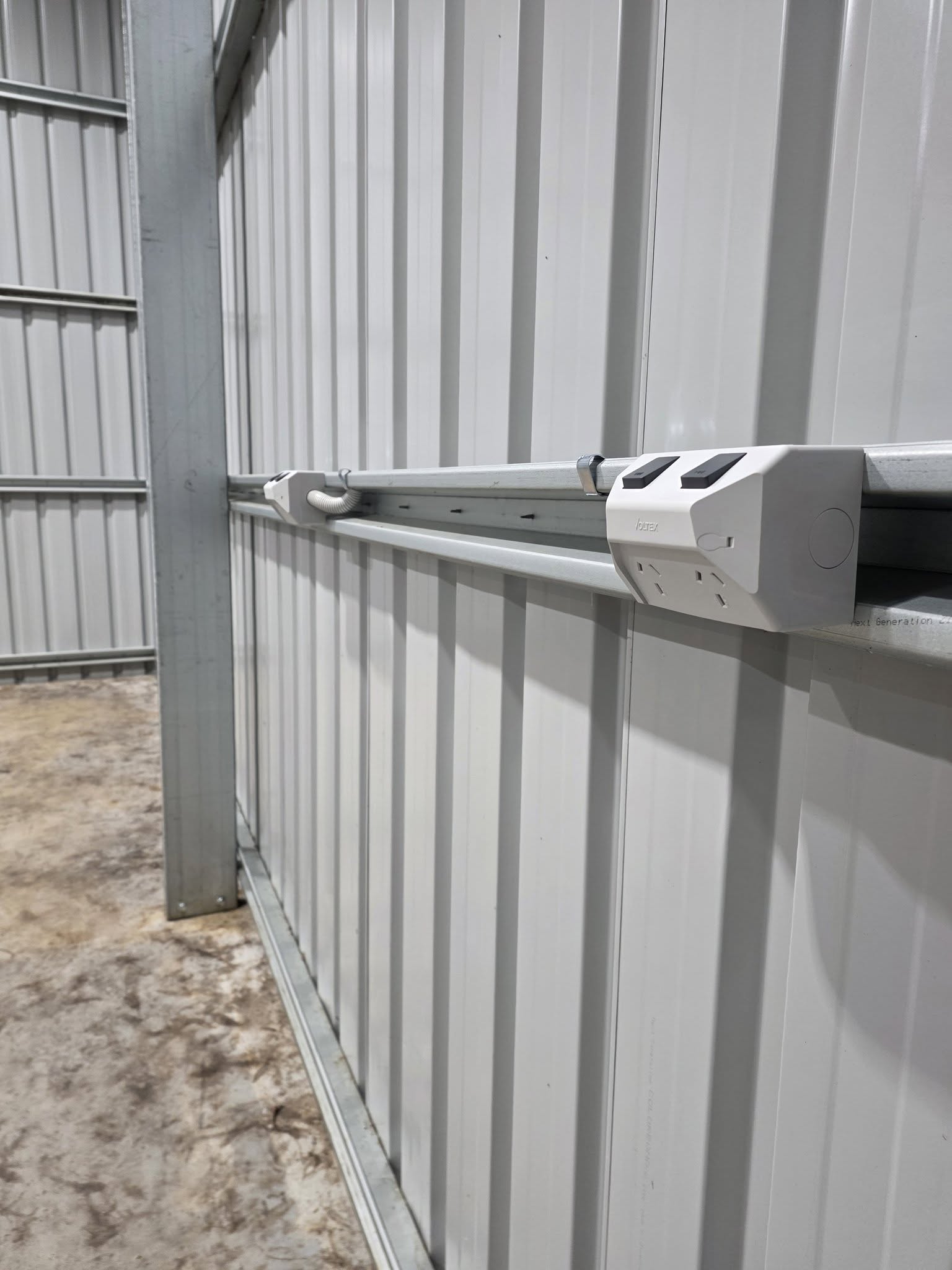

• Strategically placed additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency.

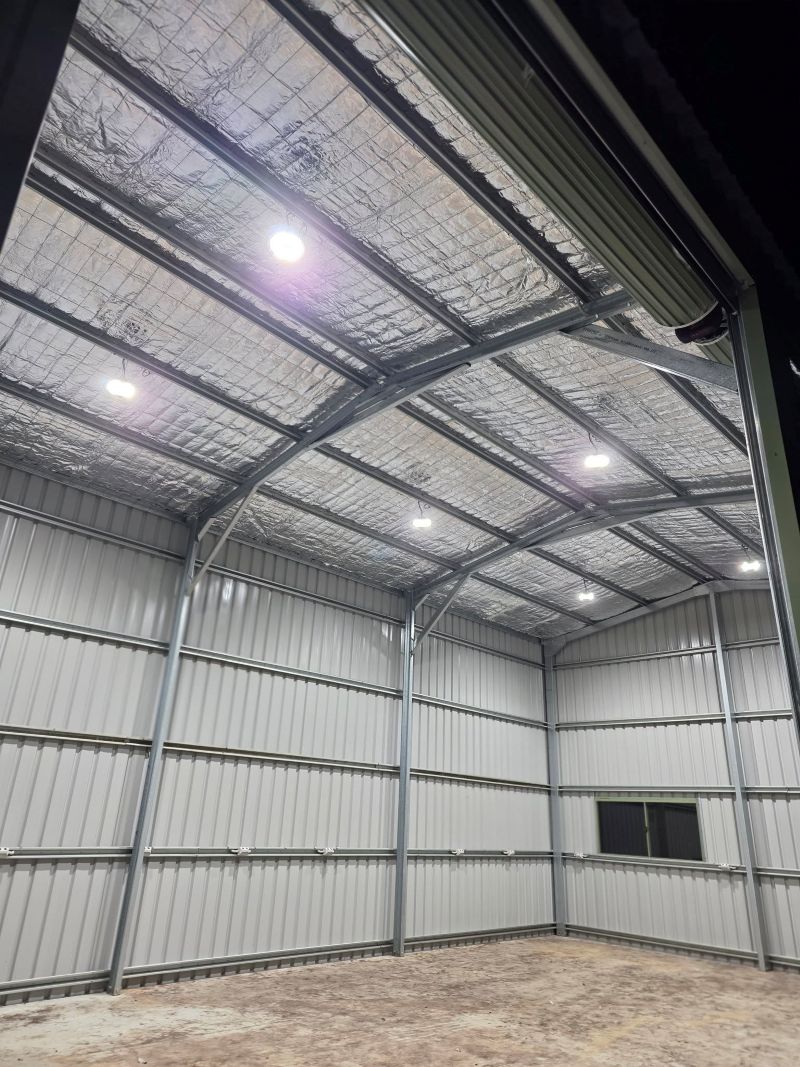

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during intricate tasks.

For thorough guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment.

Establishing a Comprehensive Workshop With Three-Phase Power Supply

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power may not suffice. In such instances, considering three-phase power is advisable.

Three-phase power provides more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being used to guarantee safety and efficiency.

If you are uncertain whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be sufficient. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Essential for Your Shed's Safety?

Properties located on acreage in the Mid North Coast often face severe lightning storms. A direct or nearby strike can cause significant damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power.

Installing a high-quality surge protection device within the sub-board acts as an economical form of insurance. This device absorbs voltage spikes before they can reach your valuable equipment. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to safeguard your investments.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to seamlessly switch to generator power safely during outages.

What Are the Regulations Concerning Council Approval and Compliance in NSW?

There are several vital regulations you must be aware of:

• All electrical work in NSW must be executed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be carried out by a licensed contractor who will issue a Certificate of Compliance (CCEW).
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation to ensure compliance and safety efficiently.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the necessity for single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Answering Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant risks. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the correct depth for your specific property, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed?

In most cases, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications.

Ensure Safe and Efficient Wiring for Your Shed

If you live on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your needs.
