Solar Switchboard Upgrade for Chelmer’s Air Conditioning System

Project Location: Chelmer
Project Scope: Upgrade of the switchboard
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, supports 30kWh battery storage, and integrates ducted air conditioning—eliminating the need for a three-phase upgrade.

Choose Precision Electrical & Air for Your Comprehensive Switchboard Upgrade

This homeowner in Chelmer undertook a major renovation project that involved the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection across the entire home. Additionally, a new ducted air conditioning system was seamlessly integrated into the overall renovation strategy. Before connecting these advanced systems, it was essential to assess and upgrade the existing switchboard to ensure it met the latest compliance standards and effectively managed the increased electrical loads that these installations would introduce.

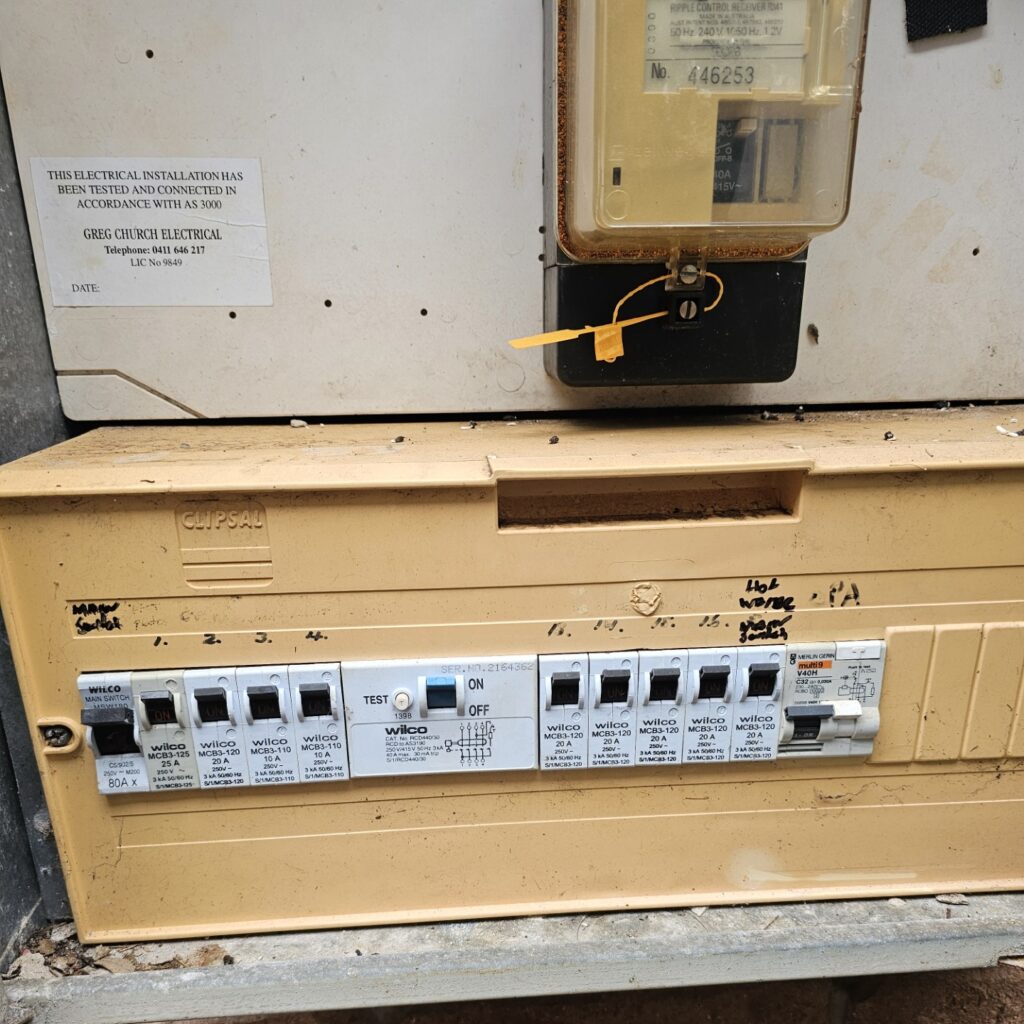

The original switchboard was outdated and featured obsolete circuit breakers, alongside a single Residual Current Device (RCD) that provided protection for the entire property. It was inadequate for supporting solar energy integration and battery storage. Moreover, the circuit labeling was insufficient, rendering it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance posed a significant risk to the efficient operation of the newly upgraded systems, potentially jeopardising the homeowner's investment.

Is a Three-Phase Upgrade Truly Necessary for Your Solar and Battery System?

When assessing the specifications of a 17.86kW solar system paired with a 30kWh battery, it is a common misconception that a three-phase upgrade is a prerequisite. This misunderstanding can lead to substantial financial repercussions for the homeowner, potentially incurring costs ranging from £3,500 to £6,000, along with a lengthy delay for approval from Energex for network modifications.

Comprehensive Technical Analysis Conducted to Determine Upgrade Necessity

Two critical factors were vital in ascertaining whether a three-phase upgrade was indeed warranted. Firstly, the supply cable for the residence was strategically located near the street junction, which allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, the solar and battery systems were specifically designed to reduce demand on the grid rather than increase it, meaning there was no technical justification from the network's perspective for the need for a three-phase upgrade. Furthermore, the ducted air conditioning system was also found to comply with essential parameters for efficient single-phase operation, reinforcing the decision.

As a result, the decision was made to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and competently handle all new electrical loads without compromising safety or compliance with regulatory standards. This careful consideration not only safeguarded the property but also aligned perfectly with energy efficiency goals.

Thorough Examination of Installed Components for Maximum Safety and Compliance

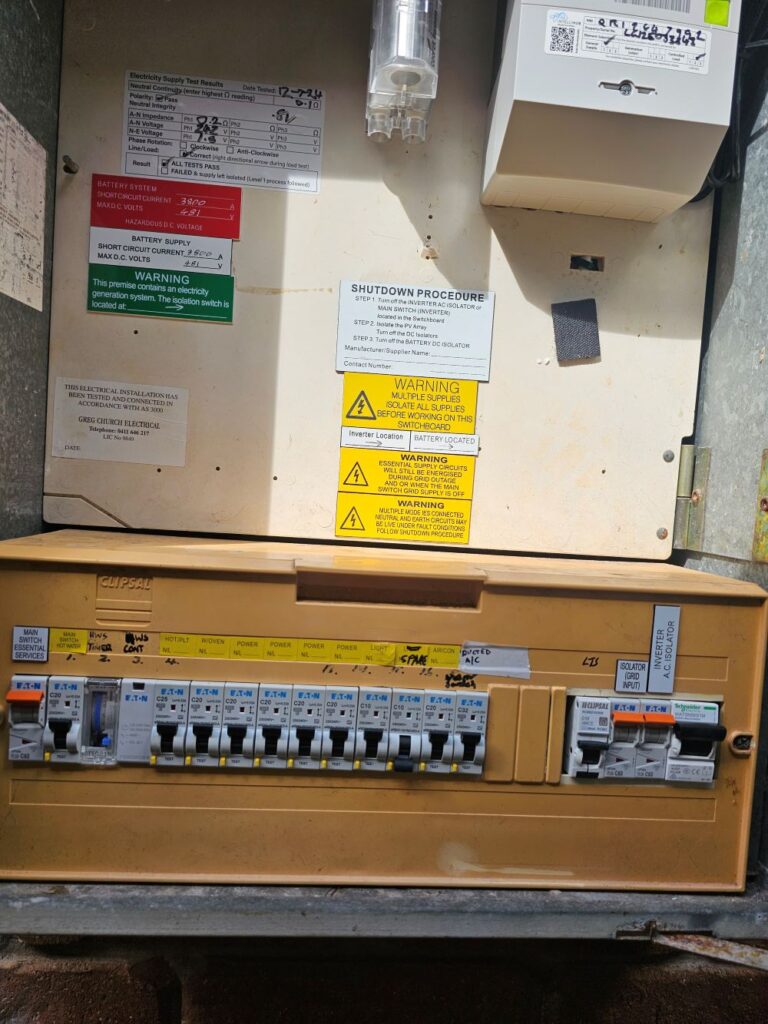

The existing switchboard underwent a comprehensive dismantling and a meticulous reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker carefully labelled for easy identification, ensuring that maintenance and troubleshooting would be straightforward. The circuits were thoughtfully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits. This meticulous planning enhanced safety and ensured compliance with current regulations, effectively mitigating any potential electrical hazards.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency, enhancing the overall energy management of the household.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard, ensuring that it operates within safe parameters.

The completed switchboard now fully complies with the latest Australian standards, guaranteeing that it is appropriately set up for any future electrical service work required at the property. This assurance of compliance not only enhances safety but also adds long-term value to the homeowner's investment.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances. This decision not only ensures ongoing operational efficiency but also contributes to significant cost savings in the long run.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property, ensuring you make an informed decision.

We promise no upselling occurs; you will receive an accurate evaluation tailored to your home, focusing solely on your needs.
